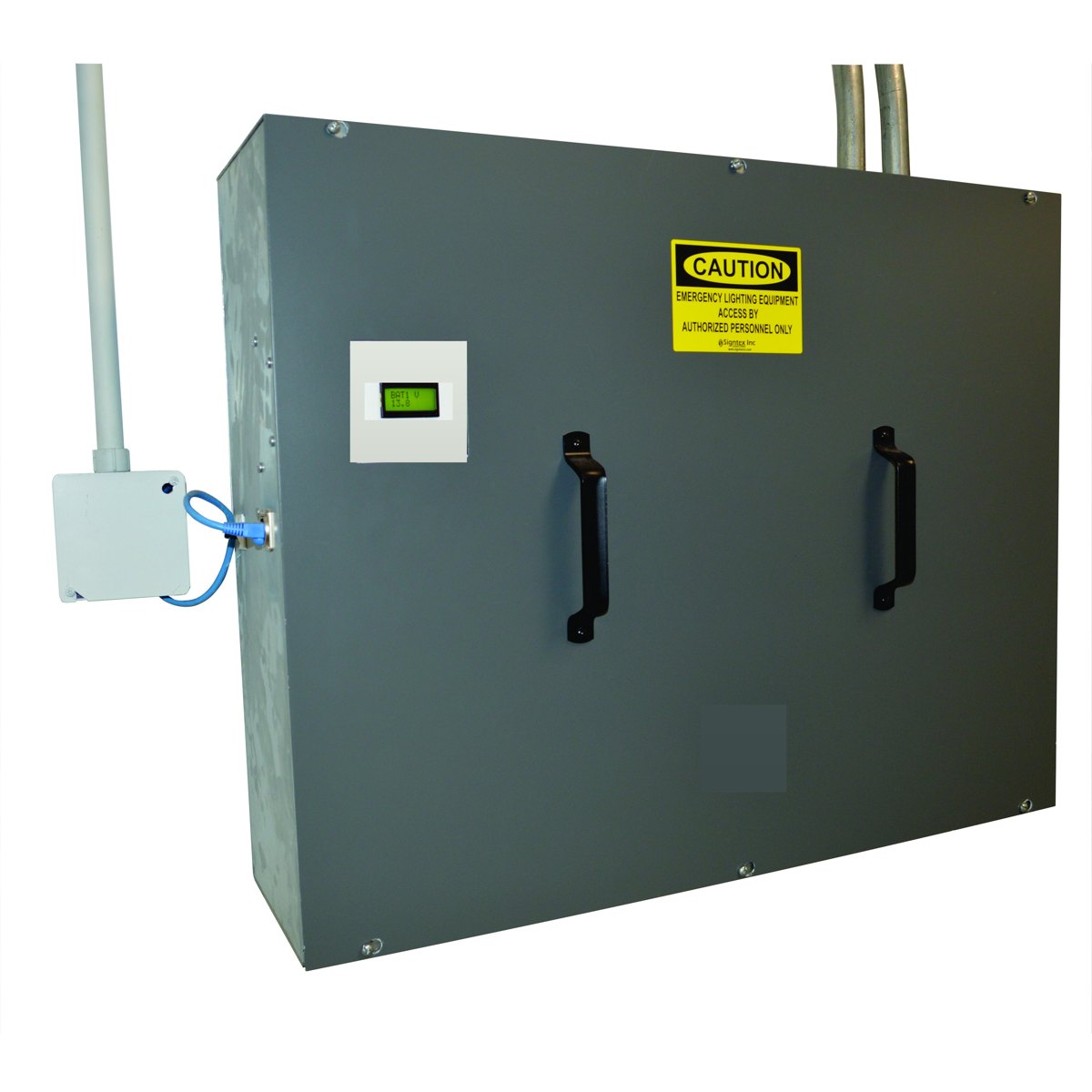

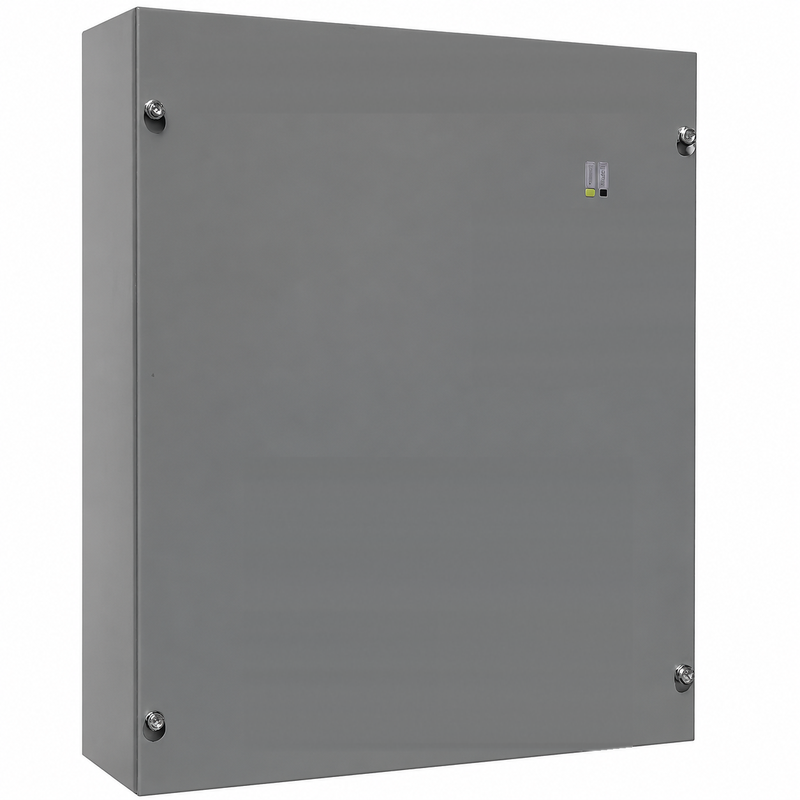

Keystone is a wall-mounted low voltage central battery cabinet that powers a building's emergency lighting fixtures and exit signs. A 9-circuit local circuit monitor is included with every cabinet. Automated diagnostics with fault reporting via email, combined with easy battery access and long lamp life, ensure the lowest possible life-cycle cost. Status reports are available on demand from any location through Sage Live. Larger buildings add cabinets, each complete with its own monitor. Sage Live monitors all of them together. The fixtures are powered to what egress needs, not to full brightness, so the cabinet carries the building on far less battery than an inverter needs.

Output

24 VDC, >= 90 min

Emergency Power

100-1000 W

Ac Input

120 VAC standard; optional 277 / 347 / 480 VAC (optional XFMR); service 15-20A

Ac Input Connection

Single phase. Utility input lands on line, neutral and ground terminals (L / N / G) on a 15-20 A service; the 277 / 347 / 480 VAC option is a multi-tap transformer ahead of that same single-line input.

Branch Circuits

Up to 8 DC output branch circuits; 2-4 conductors per circuit; wire #18-#8 AWG

Dc Polarity

Common neg -24V · Emergency +24V · Exits +12V · Security option +24V

Compact central battery delivering 12 VDC emergency power to any combination of emergency fixtures and exit signs for a minimum of 90 minutes. Centralizing the battery cuts emergency-lighting operating expense by more than 90% versus self-contained units and large inverter systems.

Output

12 VDC · 90 min minimum · 100W

Input Power

Universal 120–277 VAC

Circuits

Up to 4 · #18–#12 AWG

Max Run

#18 50 · #16 90 · #14 150 · #12 250 ft

Standby Draw

Less than 25W

Monitoring

Sage Live Direct over the service port

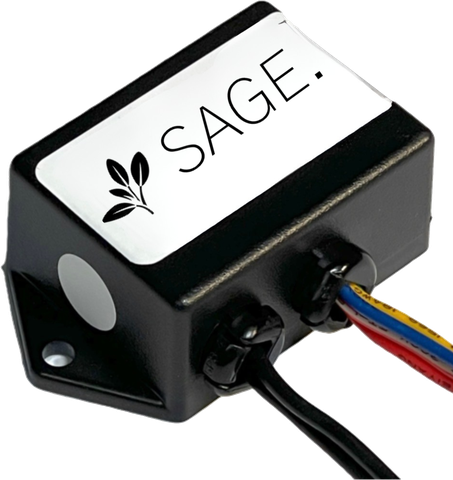

The Relay converts an LED fixture to emergency lighting operation, powered from the central battery system. Constant emergency power goes direct to the LED boards, and fixtures may be on, off, switched, or dimmed in normal mode without affecting emergency operation. General lighting fixtures with the Relay may be combined with Sage CB Fixtures and exits in the central battery system, as required.

Six variants, one per host fixture class

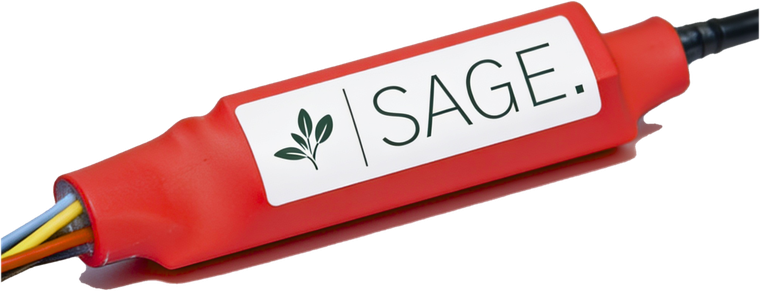

RLY-1Standard applicationLinear or stripBAABABA

Output voltage to 41 V

RLY-2Standard applicationTrofferBAABABA

Output voltage to 54 V

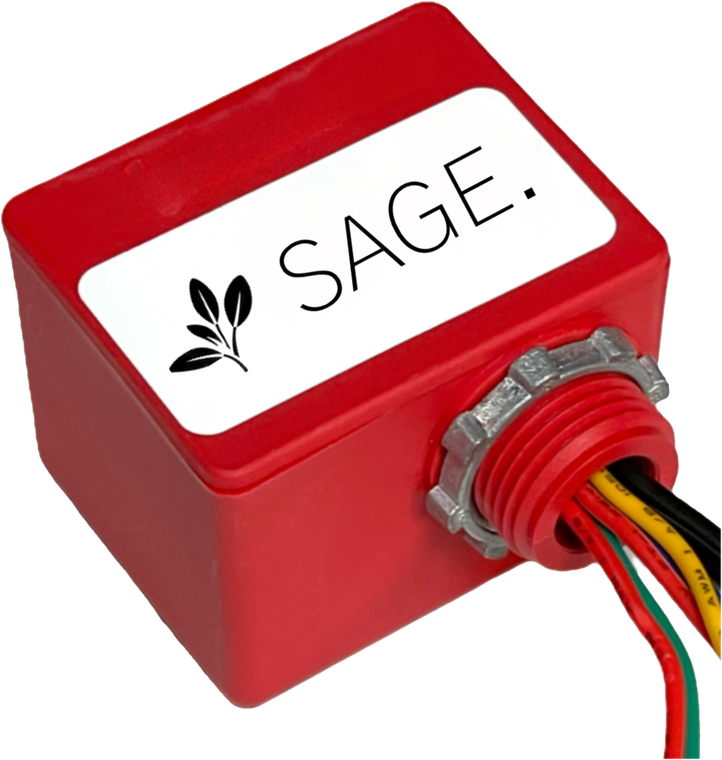

RLY-3Standard applicationJ-boxBAABABA

Output voltage to 54 V

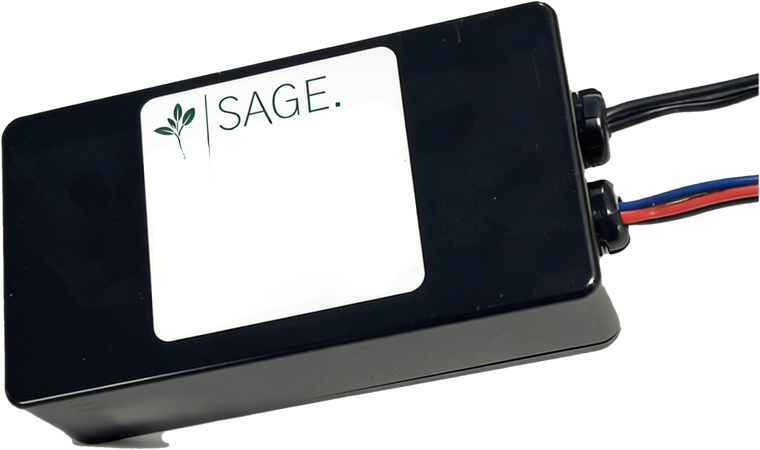

RLY-4High-Bay applicationBAABABA

Output voltage 21-126 V

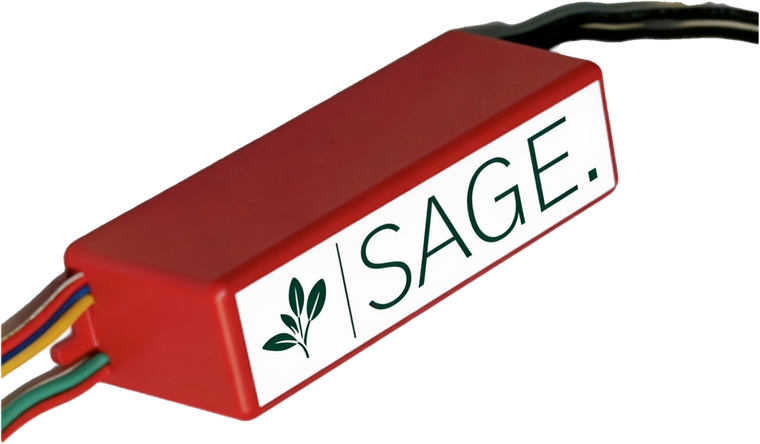

RLY-5Standard applicationWall pack or downlight

Output voltage to 100 V

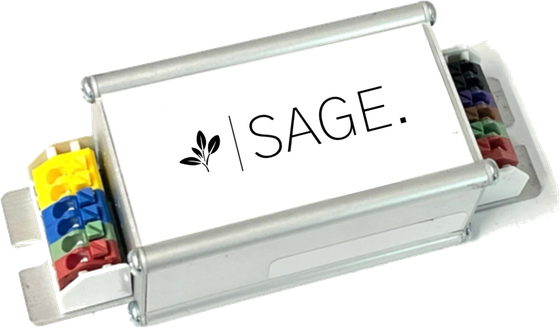

RLY-6High-Bay application

Output voltage to 210 V

Sage selects the variant for each fixture by load, voltage and form factor.

Linear LED outdoor egress with emergency lighting and night lighting. A dramatic new and compact architectural design, providing powerful emergency and normal lighting for over-door and other exterior locations. The lamp housing and canopy are fabricated from extruded aluminum, in enamel finishes, with rugged sealed diffuser lens and stainless hardware, for wall or ceiling mount. High efficiency LEDs and full 90° cut-off provide uniform emergency and night lighting on the extended egress pathway. All models are outdoor rated, UL wet location, ADA compliant, and exceed requirements of UL Standard 924 and NFPA 101. Designed and manufactured in the USA.

Input Power

24 VDC from the central battery

Emergency Operation

90 min or more, central battery

Emergency Runtime

>= 90 minutes under battery power

Power Options

10 watts emergency and normal power; 20 watts emergency and normal power

Lamp Life

Over 50,000 hours in normal use

Lamp Config

LEDs connected in parallel; single lamp failure does not disable the fixture

This architectural housing design blends well with any environment. All parts are machined from extruded aluminum and can be custom finished at the factory to match any interior design plan.

Input Power

24 VDC from the central battery

Emergency Operation

90 min or more, central battery

CB

-40°C to 50°C

Cri Cct

Standard CRI 5000K

Lamp Life

Over 50,000 hours in normal use

Warranty

10 year total customer satisfaction warranty. For details see product catalog technical data section.

Universal Mount LED downlight with a 4" trim is a most efficient emergency luminaire; very effective in long corridors, it is inconspicuous and will blend with general lighting fixtures.

Input Power

24 VDC from the central battery

Emergency Operation

90 min or more, central battery

Lumens

1100 nominal lumens (1100LM)

Wattage

12 Watts

Trim Diameter

4"

Power Factor

> 0.90

With spacing up to 55 ft in 9 ft ceilings, this recessed down light with a 4" trim is the most efficient emergency luminaire; very effective in long corridors, it is inconspicuous and will blend with general lighting fixtures without affecting the appearance of ceiling layouts.

Input Power

24 VDC from the central battery

Emergency Operation

90 min or more, central battery

CB

-40°C to 50°C

Cri Cct

Standard CRI 5000K

Lamp Life

Over 50,000 hours in normal use

Trim Ring

4" Trim Ring

At only 5" x 5" in width and height and 2" profile depth, this unit is the smallest emergency wall pack available. It has high lighting output, allowing fixture spacing up to 40 ft for 1Fc average illumination along the path of egress. The all-aluminum construction can be custom finished in our shop to match any interior.

Input Power

24 VDC from the central battery

Emergency Operation

90 min or more, central battery

Lamp Life

Over 50,000 hours in normal use.

Cri Cct

Standard CRI 5000K.

Emergency Duration

Emergency models operate for a minimum of 90 minutes upon loss of AC building power (UL 924 / NFPA LSC 101).

Protections

Brownout and Low Voltage Disconnect (LVD) circuit protection; line latch circuit prevents unwanted emergency activation at installation.

A powerful LED fixture designed for very low profile recessed ceiling mount, or optional surface mount, suitable for interior locations, at heights over 40 ft from floor level. Dual function operation in either emergency or optional normal on mode, powered from the Sage central battery at 24VDC.

Input Power

24 VDC from the central battery

Emergency Operation

90 min or more, central battery

Warranty

10 year total customer satisfaction warranty. For details see product catalog technical data section.

Warranty Mark

10/5

With spacing up to 55 ft in 9 ft ceilings, this recessed down light with a 4" & 6" trim is our most efficient emergency luminaire; very effective in long corridors, it is inconspicuous and will blend with general lighting fixtures without affecting the appearance of ceiling layouts.

Input Power

24 VDC from the central battery

Emergency Operation

90 min or more, central battery

Beam Angle

120° Large angle

Lamp Life

Over 50,000 hours in normal use

Cri

Ra > 90

Power Factor

> 0.90

A low profile and powerful LED recessed fixture for mounting up to 4 ft from floor level. Dual function operation in either emergency or Normal mode.

Input Power

24 VDC from the central battery

Emergency Operation

90 min or more, central battery

CB

-40 C to 50 C

Power

10 watts emergency and normal power

Lamp Life

Over 50,000 hours in normal use

Suggested Specification

Install Sage RAD Floor Proximity LED emergency lighting fixture available as a remote device connected to a central battery power source. See Sage central battery (Sage central battery) data sheet. Upon loss of AC building power, emergency models shall operate for a minimum of 90 minutes under battery power, in compliance with UL 924 and NFPA LSC Code 101. The unit may be specified to operate normally on for security or night lighting, as required.

The Sage exit series Recessed LED Edge Lit Exit Sign is suitable for almost any mounting configuration. The edge-lit panel is constructed of high-grade acrylic with custom graphics and directional arrows to point towards the exit direction. The removable front cover makes installation and maintenance headache-free.

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

At least 90 minutes per sign

Dc Input Remote

24 VDC input for remote (RE) configuration

Protection

Surge and spike protected power supply; Low Voltage Disconnect prevents deep battery discharge.

Operating Temp

0 C to 50 C (standard)

Output Lamp Load

2.4–5 VDC to the lamp load (per install wiring diagrams).

Ultra-bright, energy efficient, long-life Red or Green LED exit sign in injection-molded engineering-grade thermoplastic. Wall, top, or end mountable with a universal knockout pattern an internal solid-state transfer switch that connects the battery to the on-board LED board and any connected remote LED lamp heads for minimum 90-minute emergency illumination.

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 min or more, central battery

Dc Operation

Option REC: 24V; and option REP: 48/60V for DC power distribution systems.

Indicator

Unique bi-color LED indicator light alerts occupant on battery condition (Green = normal, Red = check battery).

Width Overall In

12

Width Inner In

5-3/8

— Edgelit Aluminum Exit Sign, Series CIT

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 min or more, central battery

Emergency Runtime

Minimum 90-minute emergency illumination.

Mounting

Aluminum mounting canopy included for top, end, or back mount.

Width Face

5 7/8 in (top-view canopy detail)

Canopy Detail

4 7/8 in / 1 3/4 in (end/canopy view)

The Series ECL delivers very high lumen output with Dual MR16 LED lamps, and remains hidden in normal conditions. It is ideal for locations with high ceilings, or areas requiring longer spacing between fixtures. High efficiency LEDs, Designed and manufactured in the USA.

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 min or more, central battery

Patent

U.S. Patent 5, 851, 061

Warranty

3 year total customer satisfaction warranty. For details see product catalog technical data section.

Note

THIS DEVICE CONTAINS A MICROPROCESSOR TO CONTROL EMERGENCY LIGHTING. OPERATION CAN BE DISRUPTED BY EMI (ELECTRO- MAGNETIC INTERFERENCE) EMITTED BY CERTAIN TYPES OF HIGH-POWERED EQUIPMENT. DO NOT CONNECT IN THE SAME CIRCUIT OR SHARE NEUTRAL WIRING WITH FREQUENCY-CHANGING DIMMING EQUIPMENT USED WITH HID FIXTURES OR SIMILAR. CONTACT FACTORY FOR MORE INFORMATION.

Layout Assistance

Contact for layout assistance. Code compliant emergency lighting layouts provided! Specifications and dimensions subject to change without notice.

Self-luminous (radioluminescent) emergency exit and egress signs, internally illuminated by sealed tritium gas light sources. 100% reliable — require no electrical power, wiring, or batteries, and no maintenance. EVE = EXIT signs; custom-graphics variant = graphics (e.g. AREA OF REFUGE), per spec sheet custom-graphics variant 2.01.1.

Light Source

Internally illuminated by sealed tritium gas light sources (radioluminescent / self-luminous lamps).

Power

Requires NO electrical power, wiring, or batteries, and NO maintenance. No external light or power is required for activation.

Output Color

Green light output for maximum visibility in dark conditions.

Visibility Tested

Observation tested for visibility up to 125 ft in complete darkness.

Rated Life

Lamps guaranteed for up to 20 years of continuous operation. (Ordering offers 10-year or 20-year useful-life lamps; see ordering NO. position.)

Overall Suggested Spec

13 5/16" x 8 1/4" x 1"

The Sage edge-lit exit Surface Mount Edge-Lit Exit Sign is field adjustable for wall or ceiling mount. The edge-lit panel is constructed of high-grade acrylic with custom graphics and directional arrows to point towards the exit direction. Ultra high output LEDs produce brilliant graphic illumination well above code minimums.

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 minutes for each sign

Mounting

Field selectable wall or ceiling mount. No exposed hardware.

Led Output

Ultra high output LEDs, up to 5 candela in green or red

Warranty

5 year total customer satisfaction warranty. For details see product catalog technical data section.

Lamp Housing Canopy

extruded aluminum

Supply and install Self-Luminous Exits Series LUM self luminous EXIT signs illuminated by tritium gas lamps. The housing shall be fabricated from extruded aluminum with overall dimensions of 14" x 9" x 3/4", having a minimum external wall thickness of .09" and a polycarbonate window of .125" minimum thickness. Universal mounting brackets shall be supplied. For signs specified with a luminous life of 10 years, the minimum initial brightness measured at any point on the external surface shall be 0.12 ft L (.21 cd/m²); for any other specified lifetime, the minimum surface brightness shall be 0.012 ft L (.021 cd/m²) per year of specified luminous life.

Power

SELF-LUMINOUS (radioluminescent tritium gas). NO electrical connections, NO battery, NO external power input, NO heat generated, and NO maintenance required for the specified life (up to 20 years). Not central-battery powered (ebs_integrated = false). No external light required for activation.

Guarantee

Guaranteed luminous life up to 20 years, as specified; illuminated life as specified on the product label.

10 Year

Minimum initial brightness measured at any point on the external surface shall be 0.12 ft·L (0.21 cd/m²).

Other Lifetimes

For any other specified lifetime, the minimum surface brightness shall be 0.012 ft·L (0.021 cd/m²) per year of specified luminous life.

Wavelength

525 nm (green)

Overall

14" x 9" x 3/4" (356 mm x 229 mm x 19 mm)

Die-Cast Aluminum Exit Sign · Exits · Premium-grade die-cast aluminum housing, field-selectable knockout chevrons, double-face field conversion.

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 min or more, central battery

Height Overall In

9

Height To Face In

8 3/8

Width In

12 5/8

Face Panel Width In

5 1/2

The Surface Mount Edge Lit Exit Sign is field adjustable for wall or ceiling mount. The edge-lit panel is constructed of high-grade acrylic with custom graphics and directional arrows to point towards the exit direction. Ultra high output LEDs produce brilliant graphic illumination well above code minimums.

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 minutes for each sign

Us Patent

U.S. Patent 5,276,591

Mounting

Field selectable wall or ceiling mount. No exposed hardware.

Wall Mount

Sign face 13" W x 7 1/2" H; canopy 5" wide; 1 7/8" lamp-housing tube profile; 1 1/2" wall-face-to-housing standoff.

Top Mount

Ceiling-to-sign-bottom drop 10" (single face); double-face shown with charge/test/status indicators boss.

Supply and install ACCESSIBLE EXIT Series PBL LED exit signs, consisting of one MASTER and one REMOTE. The face and housing shall be of die cast aluminum with maximum thickness of 5/8" (single face). Lighting uniformity shall be better than 4:1 when measured over any illuminated area and average brightness will exceed 6 ft Lambert (21 Cd/m2). Life expectancy of the LEDs shall be in excess of 20 years.

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 min or more, central battery

Connecticut State Fire Safety Code Para 1011 1 2

1011.1.2 Accessible exits. Where exit signs are required by Section 1011.1 of this code, accessible exit doors at the level of exit discharge that lead directly to accessible paths of exit discharge shall additionally be marked by the International Symbol of Accessibility. Such symbol shall be not less than 6 inches high and shall be incorporated into the required exit sign or shall be located directly adjacent to it. Such symbol shall meet the requirements of Section 1011.

Warranty

5 year total customer satisfaction warranty. For details see product catalog technical data section.

Patent

U.S. Patent 5,276,591

Vertical Wall Mount

EXIT over the accessibility symbol, vertical stack; arrow shown (>).

Compact Thermoplastic Exit Sign — Rowan · Series ROW

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 min or more, central battery

REC

24VDC for Central Battery systems.

REP

48 & 60VDC for POE or DC power distribution systems.

Width Face

11⅝"

Height Face

7¼"

Supply and install ACCESSIBLE EXIT Series SND surface mount LED exit signs. The lamp housing and canopy shall be of extruded aluminum, graphic lenses shall be optical grade acrylic with diamond polished edges. Lens size shall be 21" x 7 1/2" and EXIT letters and Accessible Graphic shall be 6" in height. Lighting uniformity shall be better than 4:1 when measured over any illuminated area and average brightness will exceed 6 ft Lambert (21 Cd/m2). Life expectancy of the LEDs shall be in excess of 20 years. Power consumption shall be less than 1/2 watt per face.

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 min or more, central battery

Tagline

Designed to meet requirements of State of Connecticut, State Fire Safety Code Para 1011.1.1 and 1011.1.2

Product Type

Exits Accessible (edge-lit LED) Exit Sign, regionally approved for Connecticut (SND). Red EXIT legend with directional chevrons and the International Symbol of Accessibility (wheelchair) graphic.

Protection

Power supply is surge and spike protected, with a low voltage disconnect.

Mounting Note P1

Field selectable wall or ceiling mount. No exposed hardware.

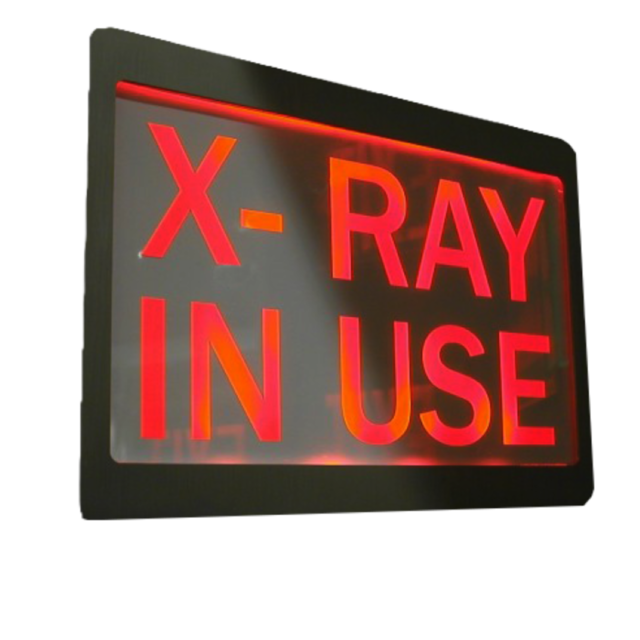

Supply and install Series XRA Open Face LED exit signs. The face and housing shall be of diecast aluminum with maximum thickness of 5/8" (single face). Lighting uniformity shall be better than 4:1 when measured over any illuminated area and average brightness will exceed 6 ft Lambert (21 Cd/m2). Life expectancy of the LEDs shall be in excess of 20 years.

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 min or more, central battery

Face

12" W x 8 1/4" H overall; standard message-area width 11"; 6 1/2" inner height.

Profile

Wall mount profile 5/8" above the surface (front cover figure cites 1/2"; dimensional figure on page 2 shows 5/8").

Directional Window

Optional directional window width 8 1/2" — includes field-replaceable chevron arrows.

Wall Mount

Standard deep J-box 4" x 4" x 2 1/8" with 1 1/2" extension ring.

LED Indoor Thermoplastic Remote Head — Remote Heads LED, Series AST

Input Power

Low voltage DC from the host unit or the central battery

Features Note

Typos preserved verbatim from the sheet: 'center-tocenter' (missing hyphen) in the adjustable-heads bullet.

Lamp Head

Ultra bright white LED lamp heads; high-performance chrome-plated metalized reflector + plastic lens.

Wattage Per Head Standard

1.0 watt per head (8 LEDs x 0.125 watt).

Wattage Per Head High Lumen Option

1.5 watts per head (12 LEDs x 0.125 watt) — option HL; provides increased center-to-center spacing.

Input Supply

Low voltage power source; low voltage wiring NOT provided. Distance of maximum run is determined by system voltage, wire gauge, and total maximum wattage on the run.

First premium-grade die-cast combo in the market. Unique design provides a spec-grade EXIT sign with LED lamp heads in one low-profile housing, combining an illuminated exit sign with emergency LED lamp heads.

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 min or more, central battery

Config

LED lamp heads integrated into the combo housing; field selectable knockout chevron directional indicators on the exit face.

Wattage

3W per head (1 LED x 3 watts).

Front Width

5⅝"

Front Height

10¾"

Cairn · Thin Die-Cast Aluminum Exit Sign

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 min or more, central battery

Illumination

Ultra bright, energy efficient, long life Red or Green LEDs.

Face Width

5 1/8"

Depth

4 1/4"

Face Height

8 3/8"

Exits · Exits/Exits · Series CAR

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 min or more, central battery

Illumination

Ultra-bright, energy efficient, long-lasting white LEDs provide uniform illumination.

Housing Width In

14 3/8 (outer) / 13 7/8 (inner)

Canopy Width In

6

Housing Height In

9 - 10

Indoor steel LED remote head with long-lasting, efficient, ultra bright white LED lamp heads. Powered from a low voltage power source with low voltage wiring (not provided); has no on-board battery. Adjustable 6V 5.3W lamp heads with high performance chrome-plated metallized reflector and glass lens for optimal light distribution. Durable 20-gauge steel housing in white or black finish.

Input Power

Low voltage DC from the host unit or the central battery

Lamp Heads

6V 5.3W ultra bright white LED per lamp head; adjustable.

Reflector Lens

High performance chrome-plated metallized reflector and glass lens for optimal light distribution.

Single Head Height

6 1/8"

Double Head Height

7 1/4"

Single Head Base Width

4 1/2"

Enclosed, corrosion-resistant LED emergency remote head with two fully adjustable ultra-bright 3.3 watt high-performance MR-16 base LED lamp heads, powered from a low voltage 6V/12V DC power source via low voltage wiring (not provided). Suitable for wet, washdown, and food-service environments (NEMA4X / NSF, UL certified for food service operations).

Input Power

Low voltage DC from the host unit or the central battery

Construction

Reinforced polycarbonate housing in white or black finish. Corrosion-resistant enclosure with one-piece, high-impact-resistant, UV-stabilized polycarbonate lens and molded gasket secured with stainless steel screws. Knockouts provided for conduit feed applications. Universal knockout pattern on the back provided with gasket for a watertight seal on back mount.

Lamp Heads

Two (2) fully adjustable MR-16 base LED lamp heads, 3.3 W each, high performance ultra bright.

Wiring

Low voltage wiring required to power the unit; NOT provided with the unit.

No Battery Note

Remote head — NOT self-contained. The COM has no internal battery; it is powered entirely from an external low-voltage DC source (an Sage emergency/EXIT combo unit or a central battery system). Maximum run distance is determined by system voltage, wire gauge, and total maximum wattage on the run.

Max Run

Distance of maximum run is determined by system voltage, wire gauge, and total maximum wattage on the run.

Edge-Lit Thermoplastic Exit Sign

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 min or more, central battery

Note

Values are diagram callouts on the dimensional drawing; no separate stated-dimension table is printed on the sheet.

Warranty

Five year warranty on all electronics and housing. Battery prorated for five years.

Tagline

INTELLIGENT EMERGENCY LIGHTING SYSTEMS

Chicago approved edgelit aluminum Exit/Stair sign. UV stabilized, silk screened acrylic panels provide consistent, uniform illumination from ultra-bright, energy efficient, long-lasting white LEDs. Available in single or double face configurations with a die-cast aluminum mounting canopy for universal top, end, or back mount.

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 min or more, central battery

Width Overall

13"

Width Inner

6"

Depth

4 1/2"

Height With Stem

13 3/8"

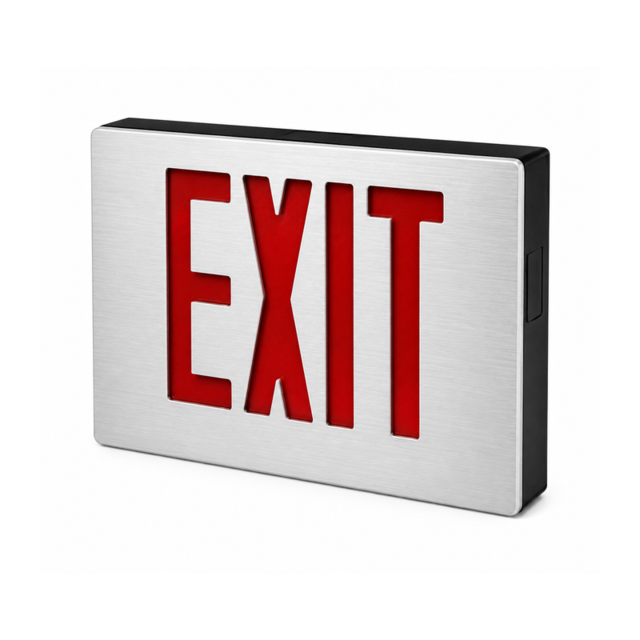

Chicago Approved Recessed Edgelit exit sign — die-cast aluminum housing, UV-stabilized silk-screened acrylic, single or double face.

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 min or more, central battery

Sage Emergency Combo — Downlight Thermoplastic Combo, Series COV. Universal single/double-face LED exit combined with an adjustable-angle linear LED emergency downlight.

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 min or more, central battery

Face Width

12⅜"

Height

8¼"

Face Depth

5½"

Downlight Module Depth

4⅜"

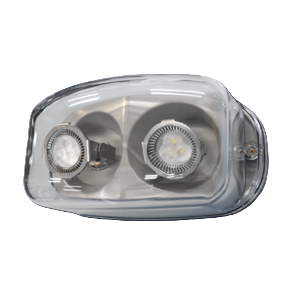

LED Hazardous Location Remote Head · Remote Heads Series ECH

Input Power

Low voltage DC from the host unit or the central battery

Note

Refer to individual specification sheets to confirm remote load capacity.

Lamp Heads

Two fully adjustable ultra-bright 3.3 W high-performance kept base LED lamp heads, for optimized center-to-center spacing.

No Battery Note

Remote head only — contains no battery and no transfer electronics; emergency power and 90-min capacity are supplied by the host EBU / exit-combo / central battery system per its own spec sheet.

Max Run

Distance of maximum run is determined by system voltage, wire gauge, and total maximum wattage on the run.

Housing

Fiberglass reinforced housing, gray finish.

Exit Combos Series FRO — All LED Hazardous Exit & Emergency Combo

Width Overall In

14⅞

Width Body In

13⅛

Height In

13¼

Depth In

4

Self Contained Vs Central Battery

Self-contained. Onboard 6V/12V maintenance-free rechargeable NiCd battery + internal solid-state transfer switch + two-rate charger provide minimum 90-minute emergency illumination on loss of normal power. Not a remote-egress / central-battery (RE) fixture — it carries its own battery and also offers remote lamp-head capacity (4.8W on 12W models, 7.8W on 15W models) to drive external heads.

Lamp Heads

Two fully adjustable, ultra-bright 3.6W high-performance MR-16 base LED lamp heads for optimized center-to-center spacing. Optionally supplied with NO heads (option NH) for use as a remote-capable EXIT sign.

High-Power LED Indoor Polycarbonate Remote Head

Input Power

Low voltage DC from the host unit or the central battery

Brand Line

Sage collection (Sage LightHouse)

No Battery Note

Remote head — no internal battery. Powered from a low voltage power source with low voltage wiring (not provided); driven by a compatible EBU / exit combo or central battery system per the Fixture Compatibility Table.

Type

Adjustable glare-free PAR-Type White LED lamp head with allinclusive lamp, reflector and lens assembly.

Wattage Per Head

6.0 W (12 LEDs x 0.50 W)

Configurations

Single head (1) or double head (2) per ordering.

Indoor high performance MR16 LED remote head. Powered from a low voltage power source with low voltage wiring (not provided). No on-board battery — operates from an external EBU/EXIT combination unit or a central battery system. Available as a single or double lamp head.

Input Power

Low voltage DC from the host unit or the central battery

Type

MR16 / MR-16 base LED Lamp, ultra bright white

Standard Blank

3.6W high lumen white LED lamp (adjustable; increases center-to-center spacing)

Option Hl

7.0W high lumen white LED lamp (high performance MR-16 base; premium center-to-center spacing)

Configurations

1 = single head; 2 = double head

No Battery Note

Remote head only — contains no battery. Powered from a low voltage power source (EBU/EXIT combination unit or central battery system) via low voltage wiring (not provided). Maximum run distance is determined by system voltage, wire gauge, and total maximum wattage on the run.

Sage egress Series NEX — All LED Exit & Emergency Combo. Combination LED EXIT sign with adjustable emergency LED lamp heads; self-contained 9.6V NiCd battery for 90-minute emergency illumination.

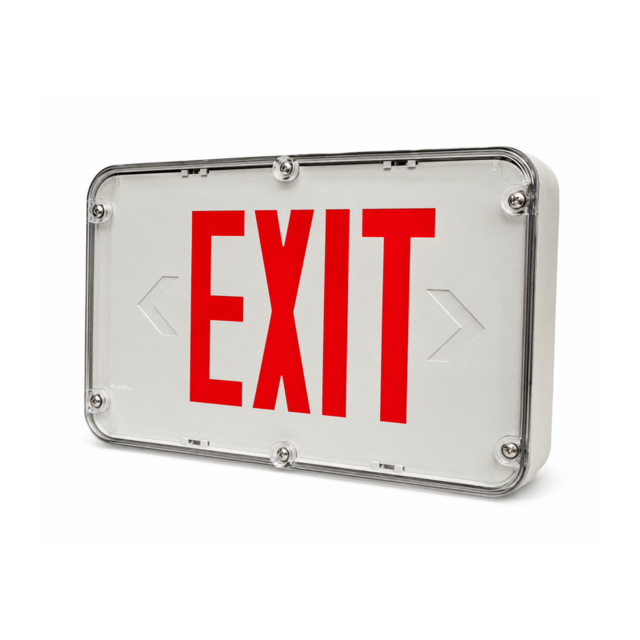

Hazardous Location Polycarbonate Exit Sign, Series NIM (BUILDER)

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 min or more, central battery

Emergency Runtime

Minimum 90-minute emergency illumination.

Overall Width

14 3/4 in

Lens Width

13 1/8 in

Height

9 in

Exits — Recessed Edgelit Aluminum Exit Sign · Series QTZ

Type

4.8V long life, maintenance-free, rechargeable NiCd (EM models only)

Emergency Runtime

minimum 90-minute emergency illumination

Charger

Fully automatic solid-state two-rate charger; recharges a discharged battery in 24 hours

Transfer

Internal solid-state transfer switch automatically connects the internal battery to the LED board

Width Overall

14 9/16"

Face Panel Width

10 9/16"

New York City Compliant Recessed Edgelit Aluminum Exit

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 min or more, central battery

Series Label

Sage Exits regional-exit series Series RDG

Warranty

Five year warranty on all electronics and housing. Battery prorated for five years.

Layout Note

Specifications and dimensions subject to change without notice.

High-Power LED Outdoor Polycarbonate Remote Head — Series RIM

Input Power

Low voltage DC from the host unit or the central battery

Type

White LED, adjustable glare-free PAR-Type lamp head with all-inclusive lamp, reflector and lens assembly

Wattage Per Head

6.0 W (12 LEDs x 0.50 W) per head

Spacing Performance

Up to 100-ft center-to-center spacing with a 6-ft path of egress at 15-ft mounting height

Power Note

Not a self-contained/battery unit. Powered from a low voltage power source (EBU/EXIT combo unit or Central Battery system) with low voltage wiring (not provided). NO on-board battery.

Construction

Engineering grade, high-impact resistant polycarbonate housing; sealed and gasketed; standard gray or black finish.

New York City Compliant Die-Cast Aluminum, Series SLA

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 min or more, central battery

Series Label

Sage series name

Width Top

6¹¹/₁₆"

Depth Side

4³/₈"

Height Face

11¼"

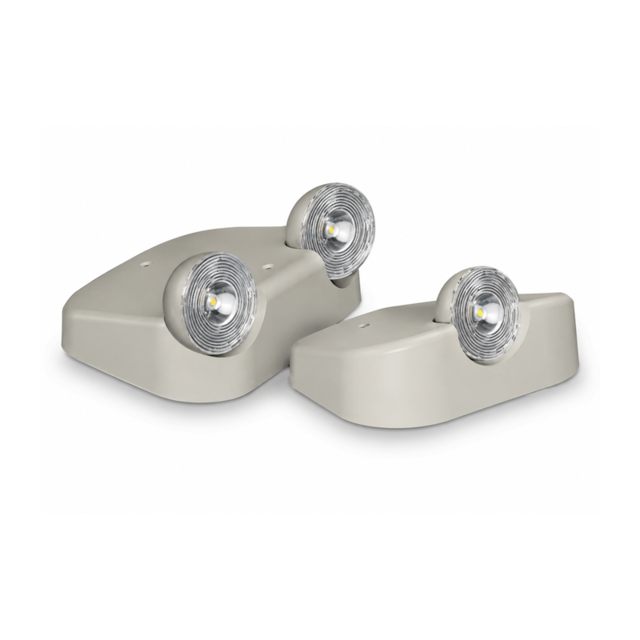

Mini Indoor LED Remote Head

Input Power

Low voltage DC from the host unit or the central battery

Series Label

Sage Series SOA

Lamp Head

One, 0.5W white LED per lamp head (0.5W per head).

Lamp Assembly

Unique all-inclusive lamp, diffuser and lens assembly; adjustable LED lamp heads for optimal center-to-center spacing.

Power Source

Powered from a low voltage power source with low voltage wiring (not provided).

No Battery Note

Remote head only — contains no battery; powered from a remote/central low-voltage emergency source. Maximum run distance is determined by system voltage, wire gauge, and total maximum wattage on the run.

LED Outdoor Polycarbonate Remote Head — Remote Heads, Series SOL

Input Power

Low voltage DC from the host unit or the central battery

Features Note

Typo preserved verbatim from the sheet: '1 LEDs x 0.5 watt' (singular 'LED' would be grammatical) in the watts-per-head bullet.

Lamp Head

Ultra bright white LED lamp heads with a unique all-inclusive lamp, diffuser and lens assembly. Adjustable for optimal center-to-center spacing.

Wattage Per Head

0.5 watt per head (1 LED x 0.5 watt).

Input Supply

Low voltage power source; low voltage wiring NOT provided. Distance of maximum run is determined by system voltage, wire gauge, and total maximum wattage on the run.

Housing

Engineering grade, high-impact resistant polycarbonate; sealed and gasketed; standard gray or black finish.

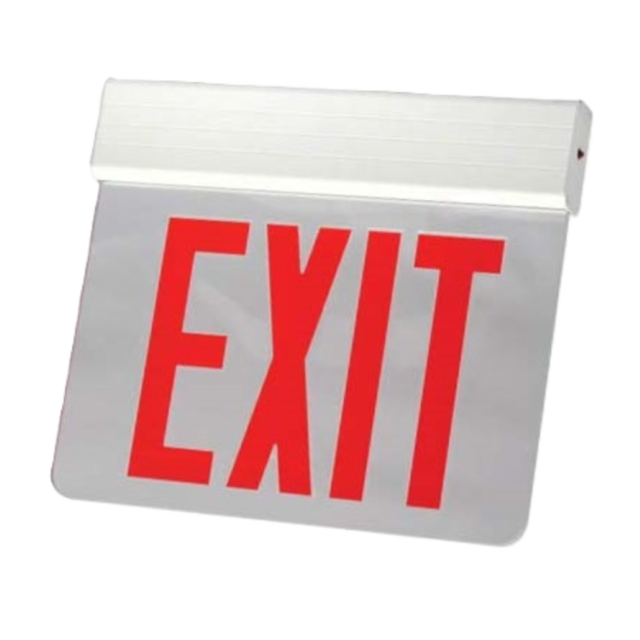

Red LED surface-mount edgelit aluminum exit sign, New York City compliant, with an ultra-clear acrylic edgelit panel and 8" EXIT letters; double-face capable, for central battery (CB) operation, and remote DC / POE (REP) configurations.

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 min or more, central battery

Face Width

5⅛"

Overall Width

15⁹⁄₁₆"

Canopy Width

4¼"

Stem Height

14"

Summit series — LED Hazardous Location Emergency Unit

Family

Emergency Light Unit

Warranty

5-year (electronics & housing); batteries prorated 5 years

Width Overall In

16½

Width Body In

14⅜

Height Left In

6¾

Height Right In

6½

Thin Thermoplastic Exit Sign

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 min or more, central battery

Illumination

Ultra bright, energy efficient, long life Red or Green LEDs.

Patents

U.S. Patent No.#'s: 9,990,868; D825,003

Face Width

11¾"

Face Height

7¼"

Wey Location All LED Exit & Emergency Combo [VERBATIM TYPO: "Wey" = "Wet"; the STANDARD WET icon and the "UL listed for wet locations" listing line confirm wet-location intent]

Brand Line

Sage — Series TID

Headline Subtitle

Wey Location All LED Exit & Emergency Combo [VERBATIM TYPO: "Wey" = "Wet"; the STANDARD WET icon and the "UL listed for wet locations" listing line confirm wet-location intent]

Warranty

5 year (electronics & housing); battery prorated 5 years

Front Width Top

5⁵⁄₆″

Side Width Top

5⁵⁄₆″

Front Height Left

13¹¹⁄₁₆″

Compact Wet Location Polycarbonate Exit Sign

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 min or more, central battery

Series Label

Sage BUILDER · Series TOR

Warranty

5/5 (5-year electronics & housing; battery prorated 5 years)

Face Height In

8½

Face Width In

12⅛

Series VIG — Remote Capable LED Emergency Unit

Product Type

Self-contained LED emergency light unit (emergency battery unit) with two adjustable LED lamp heads and standard remote capacity. NOT a central-battery / RE-fed device — operates from its own internal rechargeable battery; can drive compatible remote heads in addition to the on-unit heads.

Count

2 (two adjustable heads shown on the unit)

Wattage Per Head

1W (8 LEDs x 0.125) per head; HL (High-Lumen) option = 12-LED heads at 1.5W per head

Type

nickel cadmium (NiCd), maintenance-free, rechargeable, long life

Spacing

Adjustable heads provide optimal center-to-center spacing; HL option gives increased center-to-center spacing (1.5W per head). See CENTER-TO-CENTER SPACING GUIDELINES table. 'Meets NFPA 101 Requirements for: 10' center-to-center spacing - 3' path of egress 1' from the wall - 7 1/2' mounting height.'

Voltage

3.6V

Low Profile LED Exit & Emergency Combo · Series VIS

Input Power

12 VDC normal, 24 VDC emergency

Emergency Operation

90 min or more, central battery

Exit Face Width In

11 3/8

Overall Width With Heads In

16

Height In

7 1/4

Inner Dim Top In

5 1/2

Series ZEP — LED High Performance Emergency Thermoplastic Unit

Illumination Note

Lamp-head COUNT is figure-derived only (two heads shown in the figure/photo); the spec TEXT never states a head count. Do not publish a head count as a stated spec fact.

Note

Remote head family compatibility per factory specification.

Width In

12-1/4

Height In

3-3/16

Depth In

5-3/4

Warranty

Five-year warranty on all electronics and housing. Battery prorated for five years.

Series ALI — Align bollard, Lumen & Kelvin Selectable (general lighting luminaire)

Warranty

5 year warranty on all electronics and housing.

Model

ALI-302317L-3CCT

Polar Graph

Polar candela plot provided (0° Graph and 90° Graph traces); axis rings at 203 / 406 / 609 / 812 cd, angle marks 30° / 60° / 90° / 180°.

Canopy Luminaire · Sensor Ready · Series ATL

General Lumen Range

3,000 to 12,000 nominal lumens (field-selectable via SL size code: 12,000 / 10,000 / 8,000 / 6,000 / 3,000 lm)

Warranty

5 year total customer satisfaction warranty. For details see product catalog technical data section.

Lumen Formula

Lumens = EPR (watts) x Luminaire Efficacy (Lm/watt)

Sensor Note

*Sage sensor accessory codes series has 5-dial setting capability.

Factory Sensor Settings

detection area = 100%, hold time = 5 sec, stand-by period = 0 sec, stand-by dimming level = 10%, daylight threshold = disabled

Series

ATL-12L-SLSK

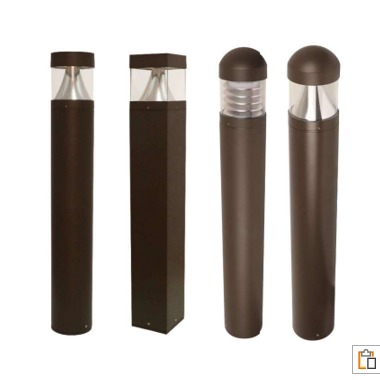

Round & Square Bollards — Lumen & Kelvin Field Selectable (Sage General Lighting Series ATM)

Polar Graph Note

Each model page includes a polar graph (0° Graph solid / 90° Graph dashed). Graphical asset — not transcribed numerically beyond the Max. Cd, LCS, and zonal tables above.

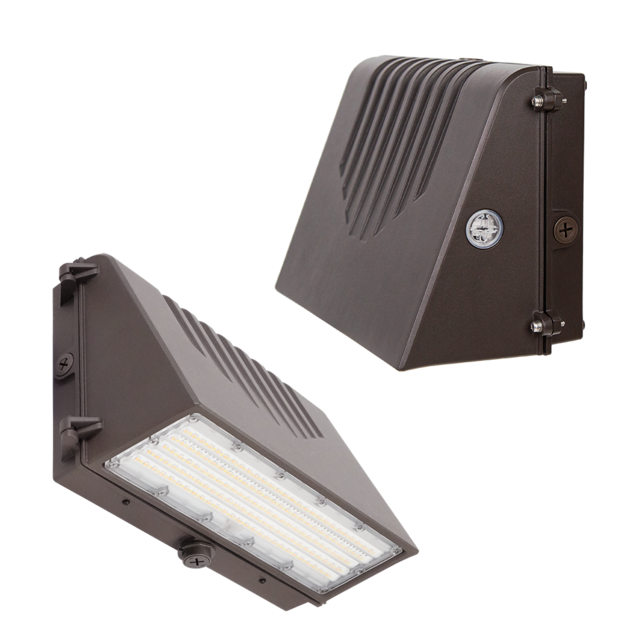

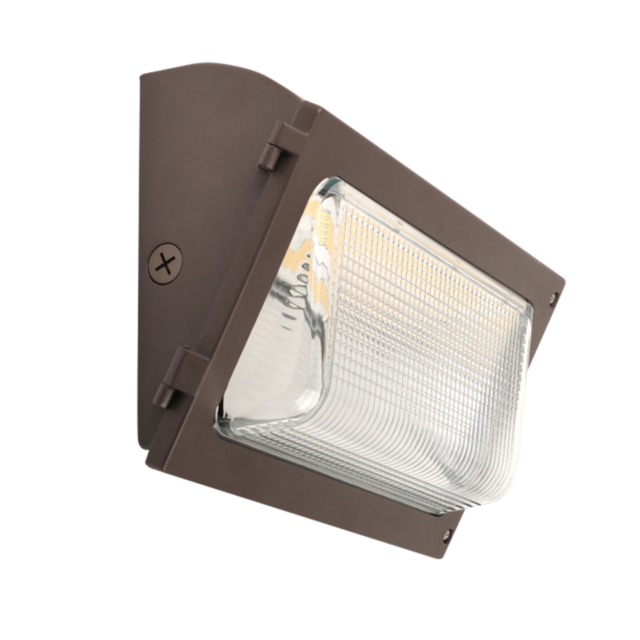

Forward Lighting Wall Pack, Sensor Ready, with adjustable Sage Relay powered from a low-voltage central battery system. Prismatic Glass lens; field-selectable 3000K/4000K/5000K CCT; premium powder-coat die cast aluminum Bronze housing; universal 120-277VAC input; 0-10V DC dimming standard; integrated photocell standard; sensor ready (occupancy sensor and remote sold separately).

Input Voltage

Universal 120-277 VAC (50-60 Hz) standard

Dimming

0-10V DC dimming drivers standard

Photocell

Integrated photocell standard; enable/disable by switch

Surge Protection

Input transient surge protection = 6kV

Power Factor

PF > 0.9

Thd

THD < 20%

Series CED is a group of adjustable LED high bay with rotatable panels allowing the user to rotate panels to direct light. The optional factory-installed Relay (Sage Relay) option ensures full emergency code compliance at the lowest possible cost.

Notes

CRI = color rendering index. All input voltages 50-60Hz. THD = total harmonic distortion. L70 = hours at which lumen output declines to 70% of initial (IES TM-21-11 calculated).

Photometric Data

IES Files and Zonal Lumen Summaries and Polar Diagrams (referenced on the spec sheet; files not included in this PDF).

Diagram Labels

L (length) x W (width) x D (depth).

Full Body Linear High Bay — Sensor Ready · Lumen & Kelvin Selectable · 12,000–60,000 nominal lumens · 4000K/5000K field selectable · emergency-ready via factory-installed Sage Relay on a low-voltage DC central battery system

Warranty

5 year total customer satisfaction warranty. For details see product catalog technical data section.

Model Header Min

Sage Relay

Model Header Max

Sage Relay

Note

Emergency lumens are calculated based on efficacy in the MID-LUMEN range (4000K) from the Electrical Data Table. The value is adjustable through the EPR range shown above. For maximum efficiency, EPR should be set at the minimum level for compliance with NFPA Life Safety Code, based on photometric data for the fixture when installed. To calculate lumen output within the EPR range given: Lumens = EPR (watts) x Luminaire Efficacy (Lm/watt).

Mounting Footnote

* SMK and PMK not compatible with UNC and EM drivers.

Series DEL — Up/Down Cylinder Luminaire. Architectural up/down cylinder; selectable down-only or up/down via internal switch; 3000K/4000K/5000K; 120VAC; wet-location, Energy Star qualified.

Config Label

STANDARD

Warranty

5-year warranty of all electronics and housing.

Housing

Aluminum

Lenses

Glass

Finish

Dark bronze powder coat

Form

Up/down cylinder; internal switch selects down light or up/down light

Full cut-off, sensor-ready LED wall pack with field-selectable nominal lumen output and field-selectable CCT. Available with factory-installed UL Listed Sage Relay for connection to a low-voltage central battery DC emergency power system, or with a self-contained EM emergency driver. Two sizes: EMB-9L and EMB-17L.

Sensor Factory Settings

detection area = 100%, hold time = 5 sec, stand-by period = 0 sec, stand-by dimming level = 10%, daylight threshold = disabled

Distributor Note

Contact for layout assistance. Code compliant emergency lighting layouts provided!

Warranty

5 year total customer satisfaction warranty. For details see product catalog technical data section.

Surface-mount LED general-lighting luminaire in round (FLA-R) and square (FLA-S) forms, with field-selectable color temperature. Steel housing with a polycarbonate lens. Suitable for new construction or retrofit. Round provides 1,000 (11") to 1,400 (14") nominal lumens; square provides 1,000 (12") to 1,500 (14") nominal lumens.

Input Voltage

120 VAC (60 Hz) standard.

Dimming

Triac dimming drivers are standard.

Power Factor

> 0.90

Cri

Color rendering index (Ra) > 80

Surge Protection

Input transient surge protection = 0.5 kV.

Power

11"/12" models = 14 nominal watts. 14" models = 20 nominal watts.

High-quality LED wall pack. The optional factory-installed Sage Relay option ensures full emergency code compliance at the lowest possible cost.

Ingress Protection

IP65

Surge Immunity

2.5kV

Housing

Diecast alloy housing, dark bronze powder coat finish (standard).

Lens

Diffused polycarbonate.

Photocell

Integral photocell standard.

Dimming

0-10vdc dimming drivers, 10% continuous dimming (standard).

Multi-Purpose Area Light, Series GRO — high-quality outdoor area light; 2,000 to 7,200 nominal lumens and 125 to 156 nominal lumens per watt (Lm/W).

Warranty

5 year warranty on all electronics and housing.

Premium Lensed Strip Light · Luminaires Series HAW

Overview

The HAW Series are surface mounted lensed strip lights designed as direct replacements for fluorescent strips. This high-efficient luminaire provides long-life and uniform illumination. Easy installation in new construction or retrofit. The optional factory-installed Sage Relay option ensures full emergency code compliance at the lowest possible cost.

Elc Note

Emergency lumens are calculated based on efficacy in the MID-LUMEN range (4000K) from the Electrical Data Table. The value is adjustable through the EPR range shown above. For maximum efficiency, EPR should be set at the minimum level for compliance with NFPA Life Safety Code, based on photometric data for the fixture when installed. To calculate lumen output within the EPR range given: Lumens = EPR (watts) x Luminaire Efficacy (Lm/watt).

Operating Temp

-20 °C to 50 °C

The JAS Series contemporary center lens design delivers a soft natural glow with even illumination and minimized glare, making it an attractive general-purpose ambient lighting solution. The optional factory-installed Sage Relay option ensures full emergency-code compliance at the lowest possible cost.

Epr Note

Emergency lumens are calculated based on efficacy in the MID-LUMEN range (4000K) from the Electrical Data Table. The value is adjustable through the EPR range shown above. For maximum efficiency, EPR should be set at the minimum level for compliance with NFPA Life Safety Code, based on photometric data for the fixture when installed. Lumens = EPR (watts) x Luminaire Efficacy (Lm/watt).

Surface Mount Kits

Optional Surface Mounting Kit (SMK-22 & SMK-24) mounts below the ceilings. Standoff height 3 3/4".

Flange Mount Kits

Optional flange mounting kits (FLK22-ET & FLK24-ET) provide for recessed installation on plaster or other hard ceilings. Attach the Flange Mount Kit to ceiling joists or other stationary structures; the panel is mounted flush to the ceiling. Flange standoff 1 1/2".

Cable Mount Kit

Optional cable mounting kits (CMK) provide additional security as well as suspended mounting. Attach one end of the Cable Mount Kit to luminaire earthquake clips using spring clips, and attach the other end to stationary structures using the adjustable, locking ceiling attachment (depress plunger to unlock cable).

Ies Note

L90 hours are IES TM-21-11 calculated hours. Photometric zonal lumen summaries and spacing criteria provided per fixture above; full IES files not included in this spec sheet.

Vapor Tight Sensor Ready · Lumen & Kelvin Selectable · Vapor Tight Luminaire (Luminaire)

Operating Temp Ambient

-40°C to 43°C (-40°F to 109°F)

Input Voltage

Universal 120-277V AC (50-60Hz) is standard

Dimming

0-10VDC dimming drivers are standard

Emergency

Emergency driver option available

Input Transient Surge Protection

2.5kV

Power Factor

> 0.90

Series LAU · Sensor Ready Linear High Bay · Lumen & Kelvin Selectable

Example

LAUSR-181512L-4K5K-10C4

Warranty

5-year warranty on all electronics and housing.

Fields Not On Sheet

Series LAU spec sheet has NO printed revision/version string (filename only), NO standalone construction/operation narrative beyond the FEATURES list, NO suggested-specification paragraph, and NO numeric polar-candela table (the polar graphs on pp 4-5 are illustrative). The 7-page spec does NOT include an installation guide, IES file, or CAD drawing (only the iso dimensional drawings on page 7). All present content captured verbatim above.

Double Ring Ceiling Light — Selectable CCT (Sage General Lighting Series LUN)

Warranty

5 year warranty on all electronics and housing.

Disk Light · Kelvin Field Selectable · Series NOV

Shown Finish Note

Spec-sheet product photo shown with brushed nickel finish.

Warranty

5-year warranty of all electronics and housing.

Nominal Lumens

1,100 lm

Nominal Watts

18 W

Input Voltage

120V 60Hz

Power Factor

> 0.90

Premium Lensed Stairwell Strip Light — Lumen and Kelvin Field Selectable (Sage General Lighting Series PIN)

Mounting

Surface Mounting.

Warranty

5 year total customer satisfaction warranty. For details see product catalog technical data section.

Lumen Calc Note

Emergency lumens are calculated based on efficacy in the MID-LUMEN range (5000K) from the Electrical Data Table. The value is adjustable through the EPR range shown above. For maximum efficiency, EPR should be set at the minimum level for compliance with NFPA Life Safety Code, based on photometric data for the fixture when installed. Lumens = EPR (watts) x Luminaire Efficacy (Lm/watt).

Ies Files Published

7 IES files: 4x 4FT 45W (277V & 120V x 5000K & 3500K, dated 3-Dec-2021); 3x 2FT 3CCT (15W/20W/25W, dated 8-Dec-2023). Indexed, not banked locally — see st_doc_manifest.

Layout Assistance Note

Contact for layout assistance. Code compliant emergency lighting layouts provided.

Spec Disclaimer

Specifications and dimensions subject to change without notice.

LED Strip Light — Lumen & Kelvin Selectable. Emergency lighting with adjustable Sage Relay (Sage Relay), powered from a low-voltage central battery system.

Operating Temperature Ambient

-20°C to 50°C (-4°F to 122°F)

Ac Voltage

Universal 120-277 VAC (50-60Hz) is standard.

Dimming

0-10VDC dimming drivers are standard.

Input Transient Surge Protection

1.0kV

Power Factor

> 0.90

Total Harmonic Distortion

< 20%

Back-Lit LED Flat Panel Light — Lumen and Kelvin Field Selectable

Warranty

5 year total customer satisfaction warranty. For details see product catalog technical data section.

Note

Emergency lumens are calculated based on efficacy in the MID-LUMEN range (5000K) from the Electrical Data Table. The value is adjustable through the Emergency Power Rating range shown above. For maximum efficiency, Emergency Power Rating should be set at the minimum level for compliance with NFPA Life Safety Code, based on photometric data for the fixture when installed.

Lumen Formula

Lumens = Emergency Power Rating (watts) x Luminaire Efficacy (Lm/watt)

Surface

Optional surface mounting kits (SMKT) mount below the ceiling. Surface kits SMKT-14 / SMKT-22 / SMKT-24 stand 3.7" deep below the grid.

Flange

Optional flange mounting kits provide for recessed installation on plaster or other hard ceilings. Attach Flange Mount Kit (FLANGEKIT-ET) to ceiling joists or other stationary structures, and the panel is mounted flush to the ceiling. Flange kits add 1.5" depth.

Cable

Optional cable mounting kits provide additional security as well as suspended mounting. Attach one end of the Cable Mount Kit (SAG-CM) to luminaire earthquake clips using spring clips, and attach the other end to stationary structures using the adjustable, locking ceiling attachment.

High-quality outdoor area light, adjustable through ninety degrees to optimize lighting pattern required. The optional factory-installed Sage Relay option ensures full emergency code compliance at the lowest possible cost.

Adjustability

Adjustable up to 90°.

Note

Emergency lumens are calculated based on efficacy in the MID-LUMEN range (4000K) from the Electrical Data Table. The value is adjustable through the EPR range shown above. For maximum efficiency, EPR should be set at the minimum level for compliance with NFPA Life Safety Code, based on photometric data for the fixture when installed. To calculate lumen output within the EPR range given: Lumens = EPR (watts) x Luminaire Efficacy (Lm/watt).

Sensor Factory Settings

detection area = 100%, hold time = 5 sec, stand-by period = 0 sec, stand-by dimming level = 10%, daylight threshold = disabled

Glare Zone Note

* 80-90° glare zone is calculated by dividing the lumens in that zone by the lumen total in the 0-90° zone.

Sage General Lighting Series VEC — Bullet Flood Light, Lumen & Kelvin Selectable

Warranty

5 year warranty on all electronics and housing.

Bug Rating

B3-U2-G0

Polar Graph

Polar graph present (0° / 90° graphs; candela rings to 25295); 0°-graph solid, 90°-graph dashed.

Ies Photometric

Photometric/LCS data present on the sheet (see photometrics block: Luminaire Data, LCS table, BUG rating B3-U2-G0, polar graph). No separate downloadable IES file is published in the manifest for VEC — photometrics are bundled into this combined spec sheet only.

High Lumen Back-Lit LED Flat Panel Light — Lumen and Kelvin Field Selectable (Sage General Lighting Series WIL)

Warranty

5 year total customer satisfaction warranty. For details see product catalog technical data section.

Note

Emergency lumens are calculated based on efficacy in the MID-LUMEN range (5000K) from the Electrical Data Table. The value is adjustable through the EPR range shown above. For maximum efficiency, EPR should be set at the minimum level for compliance with NFPA Life Safety Code, based on photometric data for the fixture when installed.

Lumen Formula

Lumens = EPR (watts) x Luminaire Efficacy (Lm/watt)

Ies File

WIL.ies

Cable Mount Detail

WIL-CM: Spring Clip attaches to earthquake clip; adjustable, locking ceiling attachment (depress plunger to unlock cable).

Operating Temp

-20 °C to 40 °C
