Atlas

ATL

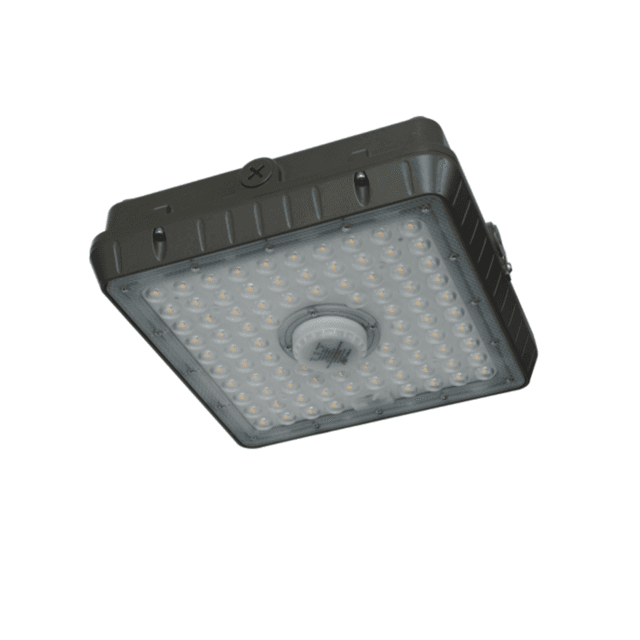

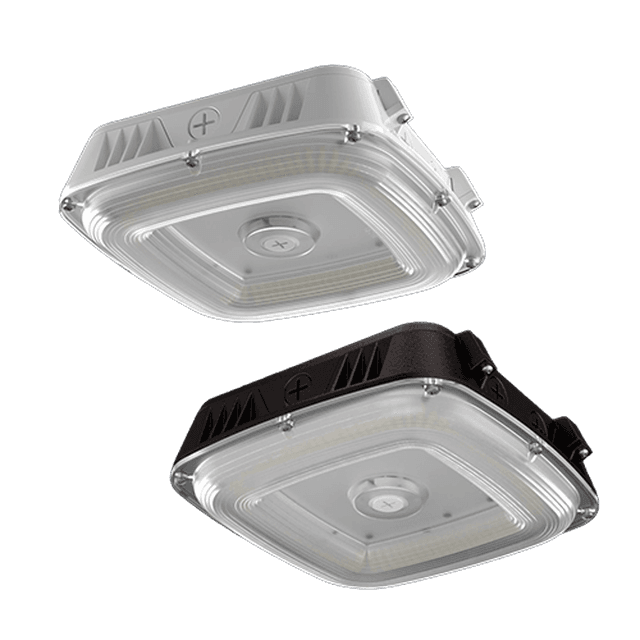

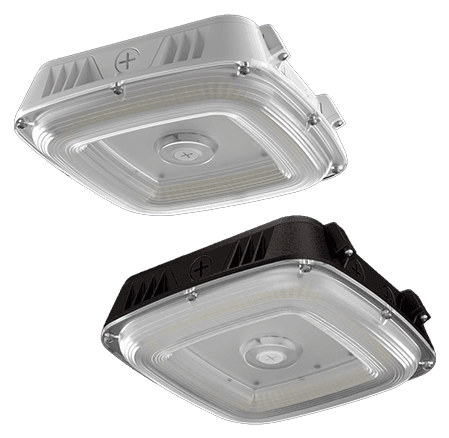

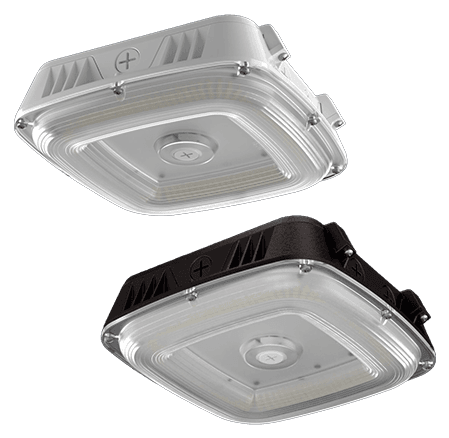

Canopy Luminaire · Sensor Ready · Series ATL

SELECT 5 LUMENS

3,000-12,000 lm field set

3CCT SELECT

3000K / 4000K / 5000K

IP65 + IK10

Wet listed, impact rated

CB COMPATIBLE

Factory relay, 10-40W EPR

Documents

Submittal documents for Atlas. Preview inline or download.

Configure your order code below. Click an option to add it to your SKU.

Build Your Order CodeInteractive

Your Order Code

ATL

Sample order example: ATL-12L-SL-SK-WHT-MV-RLY

Extended Catalog

A Sage-selected OEM product, specified and supported by Sage. Buy American projects specify from the Signature Series.

Specifications

General Lumen Range: 3,000 to 12,000 nominal lumens (field-selectable via SL size code: 12,000 / 10,000 / 8,000 / 6,000 / 3,000 lm)
Warranty: 5 year total customer satisfaction warranty. For details see product catalog technical data section.
Lumen Formula: Lumens = EPR (watts) x Luminaire Efficacy (Lm/watt)
Sensor Note: *Sage sensor accessory codes series has 5-dial setting capability.
Factory Sensor Settings: detection area = 100%, hold time = 5 sec, stand-by period = 0 sec, stand-by dimming level = 10%, daylight threshold = disabled
Series: ATL-12L-SLSK
Photometric Ies: No IES/photometric distribution table is printed on the spec sheet; beam angle 135° (from features). Nominal/EM lumens per the SL size codes and the Sage Relay EM-lumens table above.
Fields Not On Sheet: Series ATL spec rev 04.26.01 has NO separate construction/operation narrative beyond the FEATURES list, NO lumens-by-CCT/watt/efficacy table beyond Input Amps + Sage Relay EM-lumens, and NO standalone certifications paragraph beyond the CODES/marks above. All present content captured verbatim.

Commonly Specified Together

Canopy luminaire — pair with central battery + Sage Relay for emergency

Replaces These Competitor Models

Lithonia

AFBAFFAFOAFB W RD EL M6

Hubbell

DYN6

Evenlite

MANRAYEVO

Hover any code for match basis. See the full cross-reference for spec comparison.
