Forward Lighting Wall Pack — Sensor Ready

Basalt

BAS

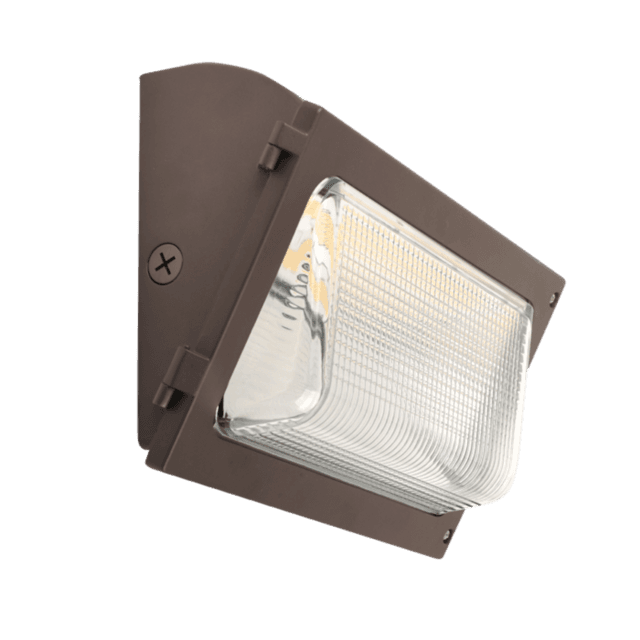

Forward Lighting Wall Pack, Sensor Ready, with adjustable Sage Relay powered from a low-voltage central battery system. Prismatic Glass lens; field-selectable 3000K/4000K/5000K CCT; premium powder-coat die cast aluminum Bronze housing; universal 120-277VAC input; 0-10V DC dimming standard; integrated photocell standard; sensor ready (occupancy sensor and remote sold separately).

Spec sheet PDF

FIELD-SELECTABLE

Lumens & CCT

WET LOCATION

IP65 · IK08

CENTRAL BATTERY

DC emergency via Sage Relay

LED LIFE

167,000 h L70

Documents

Submittal documents for Basalt. Preview inline or download.

Download

Ordering Information

Configure your order code below. Click an option to add it to your SKU.

Build Your Order CodeInteractive

Your Order Code

BAS

Sample order example: BAS-8L-SL-SK-AC

Extended Catalog

A Sage-selected OEM product, specified and supported by Sage. Buy American projects specify from the Signature Series.

Specifications

Input Voltage: Universal 120-277 VAC (50-60 Hz) standard
Dimming: 0-10V DC dimming drivers standard
Photocell: Integrated photocell standard; enable/disable by switch
Surge Protection: Input transient surge protection = 6kV
Power Factor: PF > 0.9
Thd: THD < 20%
Cct Selectable: Field selectable 3000K / 4000K / 5000K
Cri: > 80
Chromaticity: Based on < 6-step ANSI quadrangles; color maintenance < -0.0027 Δu'v' over initial 6,000 hours
Lifetime: 167,000 hrs @ L70; 51,000 hrs @ L90 (IES TM-21-11 calculated)
Operating Temp Ambient: -40°C to 50°C (-40°F to 122°F)
Housing: Premium powder-coat, die cast aluminum, Bronze housing
Lens: Prismatic Glass lens
Mounting Orientation: Forward lighting wall pack (wall-mount); sensor ready (screw is sensor ready)
Intro: SAGE RELAY CONTROLS — For use with Lighting Sage low-voltage central battery.
Epr Note: Emergency lumens are calculated based on efficacy in the MID-LUMEN range (4000K) from the Electrical Data Table. The value is adjustable through the EPR range shown above. For maximum efficiency, EPR should be set at the minimum level for compliance with NFPA Life Safety Code, based on photometric data for the fixture when installed.
Epr Formula: Lumens = EPR (watts) x Luminaire Efficacy (Lm/watt)
Sensor Factory Settings: detection area =100%, hold time = 5 sec, stand-by period = 0 sec, stand-by dimming level = 10%, daylight threshold = disabled
Warranty: 5 year total customer satisfaction warranty. For details see product catalog technical data section.

Commonly Specified Together

Traditional wall pack — central battery + Sage Relay for emergency operation

KEYKeystoneCentral Battery Cabinet

RLYRelaySage Relay

Replaces These Competitor Models

Hubbell

DYN6

Evenlite

MANRAYMANMANMANRAY

Lithonia

AFO

Hover any code for match basis. See the full cross-reference for spec comparison.
