Accessible Exit System (Master and Remote)
Sand

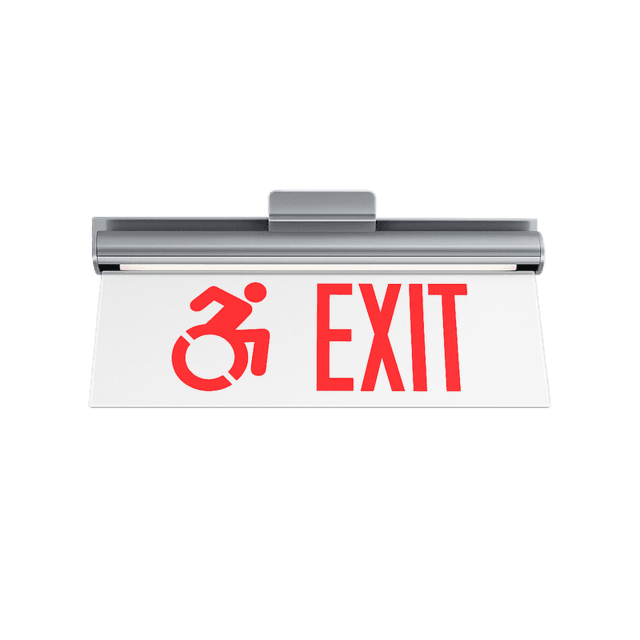

SNDSupply and install ACCESSIBLE EXIT Series SND surface mount LED exit signs. The lamp housing and canopy shall be of extruded aluminum, graphic lenses shall be optical grade acrylic with diamond polished edges. Lens size shall be 21" x 7 1/2" and EXIT letters and Accessible Graphic shall be 6" in height. Lighting uniformity shall be better than 4:1 when measured over any illuminated area and average brightness will exceed 6 ft Lambert (21 Cd/m2). Life expectancy of the LEDs shall be in excess of 20 years. Power consumption shall be less than 1/2 watt per face.
ACCESSIBLE EXIT
Code-accessible egress.
EXTRUDED ALUMINUM
Solid surface housing.
OPTICAL ACRYLIC
Clear, uniform graphics.
Documents
Submittal documents for Sand. Preview inline or download.
Ordering Information
Configure your order code below. Click an option to add it to your SKU.
Build Your Order CodeInteractive
State version
Operation
No. of Faces
Letter Color
Backgrd Color
Standard Trim Finish
Arrow Direction
Mount
Options (select any)
Your Order Code
SND-CT-CB-1-R-C-BA-NA-TW
Sample order example: SND-CT-CB-1-R-C-W-NA-TW
