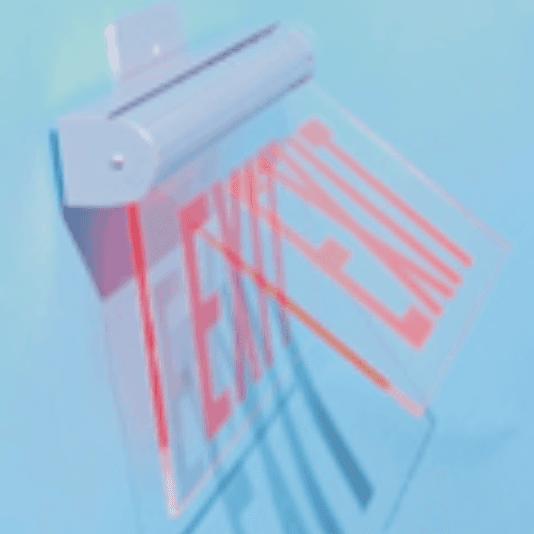

Swing-Face Edge-Lit LED Exit Sign with Hang-Straight Hinge
Jasper
JASEdge-lit LED exit sign on a 180° swing face with hang-straight hinge — diamond-polished acrylic panel with custom graphics and directional arrows, ultra-high-output LEDs (up to 5 candela) in red or green. Extruded-aluminum lamp housing on a form-fitting solid-aluminum canopy; field-adjustable wall or ceiling mount with no exposed hardware. Operates on AC (120/277 V, battery backup or AC-only) or as a remote from a central battery system (24 VDC), DC / PoE power supply (48/60 VDC), or master remote system.
SWING FACE
180° max swing, hang-straight hinge
UNIVERSAL MOUNT
Field-set wall or ceiling
SELF-TEST
Diagnostics standard (BB models)
cETLus LISTED
Tested to UL 924 / NFPA 101
Documents
Submittal documents for Jasper — preview inline or download.
Ordering Information
Configure your order code below. Click an option to add it to your SKU.
Build Your Order CodeInteractive
Operation
No. of Faces
Letter Color
Background Color
Trim Finish
Arrow Direction
Mount
Options (select any)
Your Order Code
JAS-BB-1-R-C-W-NA-TW
Sample order example: JASBB-1RCB-NA-TW-DG
