Quartz

Name: Quartz (QTZ)
Brand: Sage EM
SKU: QTZ

QTZ

RecessedSelf-Contained One-Off

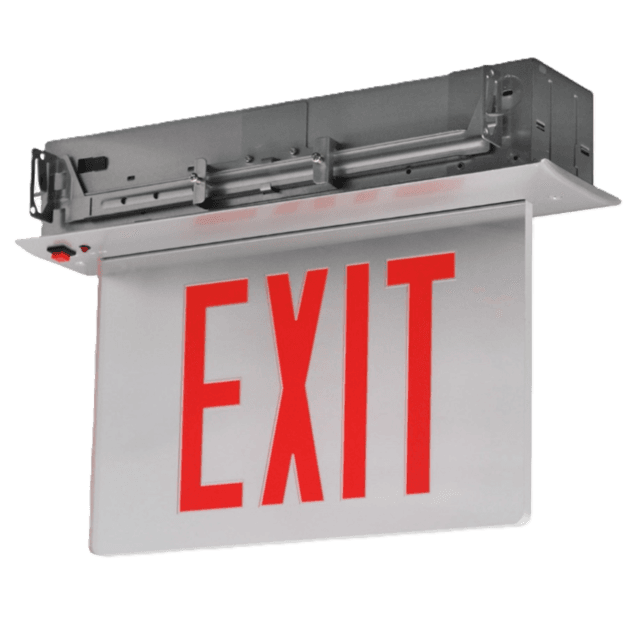

Exits — Recessed Edgelit Aluminum Exit Sign · Series QTZ

RECESSED

Flush, out of the way.

ALUMINUM

Premium housing.

EDGE-LIT

Uniform acrylic panel.

Documents

Submittal documents for Quartz. Preview inline or download.

Configure your order code below. Click an option to add it to your SKU.

Build Your Order CodeInteractive

No. of Faces

Letter Color

Panel

Trim Plate

Battery

Options (select any)

Your Order Code

QTZ-1-R-C-W

Sample order example: QTZ-1-R-C-W-EM

Extended Catalog

A Sage-selected OEM product, specified and supported by Sage. Buy American projects specify from the Signature Series.

Specifications

Type: 4.8V long life, maintenance-free, rechargeable NiCd (EM models only)
Emergency Runtime: minimum 90-minute emergency illumination
Charger: Fully automatic solid-state two-rate charger; recharges a discharged battery in 24 hours
Transfer: Internal solid-state transfer switch automatically connects the internal battery to the LED board
Width Overall: 14 9/16"
Face Panel Width: 10 9/16"
Side Module Width: 5 1/16"
Height Overall: 11 1/2"
Height Secondary: 11"
Module Height: 3 1/4"
Depth Detail: 7/8"
Base Depth: 4 5/16"
Base Height: 4 1/2"
Warranty: Five year warranty on all electronics and housing. Battery prorated for five years.
Listing: Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
Ul Location: UL Listed for damp locations (0 C – 50 C).
Cec: Certified to CEC under Title 20 Regulations.
