Pinnacle

Name: Pinnacle (PIN)
Brand: Sage EM
SKU: PIN

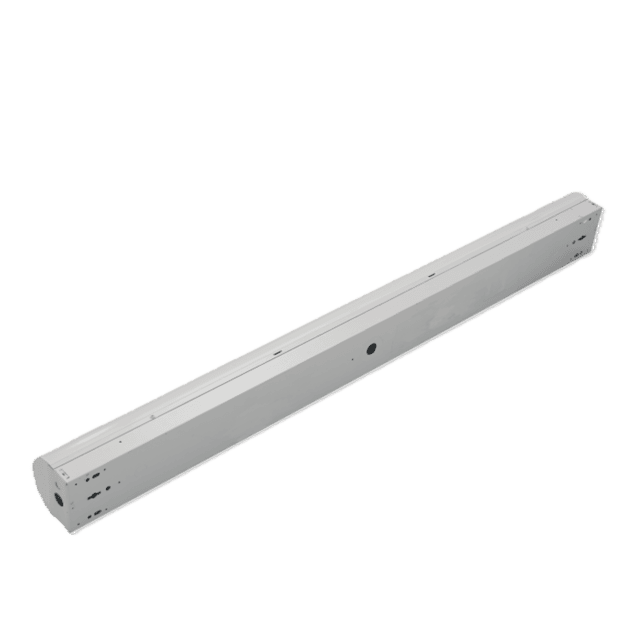

Premium Lensed Stairwell Strip Light — Lumen and Kelvin Field Selectable (Sage General Lighting Series PIN)

STAIRWELL-READY

Egress stairs.

LENSED

Uniform output.

FIELD-SELECTABLE

Lumen & Kelvin.

Documents

Submittal documents for Pinnacle. Preview inline or download.

Configure your order code below. Click an option to add it to your SKU.

Build Your Order CodeInteractive

SIZE

SELECTABLE — NOMINAL LUMENS

SELECTABLE — COLOR TEMP

VOLTAGE

Options (select any)

Your Order Code

PIN-4-SK-MV

Sample order example: PIN-4-SL-SK-MV-ODS

Extended Catalog

A Sage-selected OEM product, specified and supported by Sage. Buy American projects specify from the Signature Series.

Specifications

Mounting: Surface Mounting.
Warranty: 5 year total customer satisfaction warranty. For details see product catalog technical data section.
Lumen Calc Note: Emergency lumens are calculated based on efficacy in the MID-LUMEN range (5000K) from the Electrical Data Table. The value is adjustable through the EPR range shown above. For maximum efficiency, EPR should be set at the minimum level for compliance with NFPA Life Safety Code, based on photometric data for the fixture when installed. Lumens = EPR (watts) x Luminaire Efficacy (Lm/watt).
Ies Files Published: 7 IES files: 4x 4FT 45W (277V & 120V x 5000K & 3500K, dated 3-Dec-2021); 3x 2FT 3CCT (15W/20W/25W, dated 8-Dec-2023). Indexed, not banked locally — see st_doc_manifest.
Layout Assistance Note: Contact for layout assistance. Code compliant emergency lighting layouts provided.
Spec Disclaimer: Specifications and dimensions subject to change without notice.

Photometric Distribution

Loading photometric data…
