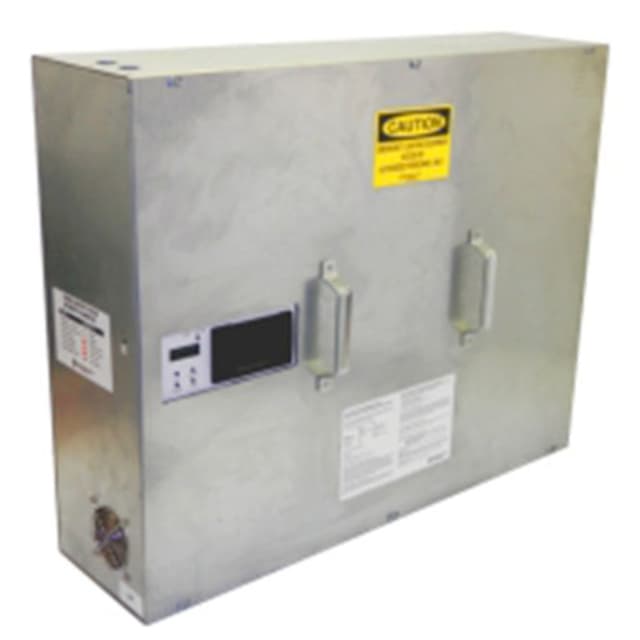

Central Battery System
Volta
VOLComputer-based central battery system delivering 24VDC emergency power to any combination of emergency luminaires and exit signs for a minimum of 90 minutes. Models available from 100 to 1000 watts with optional building management integration. Automated diagnostics with FAULT reporting and optional LCD data display ensure the lowest possible lifecycle costs..
CENTRAL BATTERY
100W to 1000W. Entire building.
BMS INTEGRATION
Optional BMS interface available.
Sage Live MONITORING
Remote diagnostics via cloud.
LCD DIAGNOSTICS
Data display and test reporting.
Construction & Operation
- Supplies emergency power at 24VDC for 90 minutes to luminaires and exit signs.
- Up to eight 24V emergency branch circuits available.
- Standard 120VAC input with optional 277, 347, or 480VAC.
- NEMA Type 1 steel cabinet for surface or recess mount.
- Computer-controlled charging optimizes battery life.
- Optional fast charger recycles from full discharge in under 12 hours.
- Optional LCD display with diagnostic control center and installed printer available.
Ordering Information
Configure your order code below. Click an option to add it to your SKU.
Build Your Order CodeInteractive
Watts
Volts
Options (select any)
Your Order Code
VOL-500-120
Sample order example: VOL-1000-120-PRT-LOK
