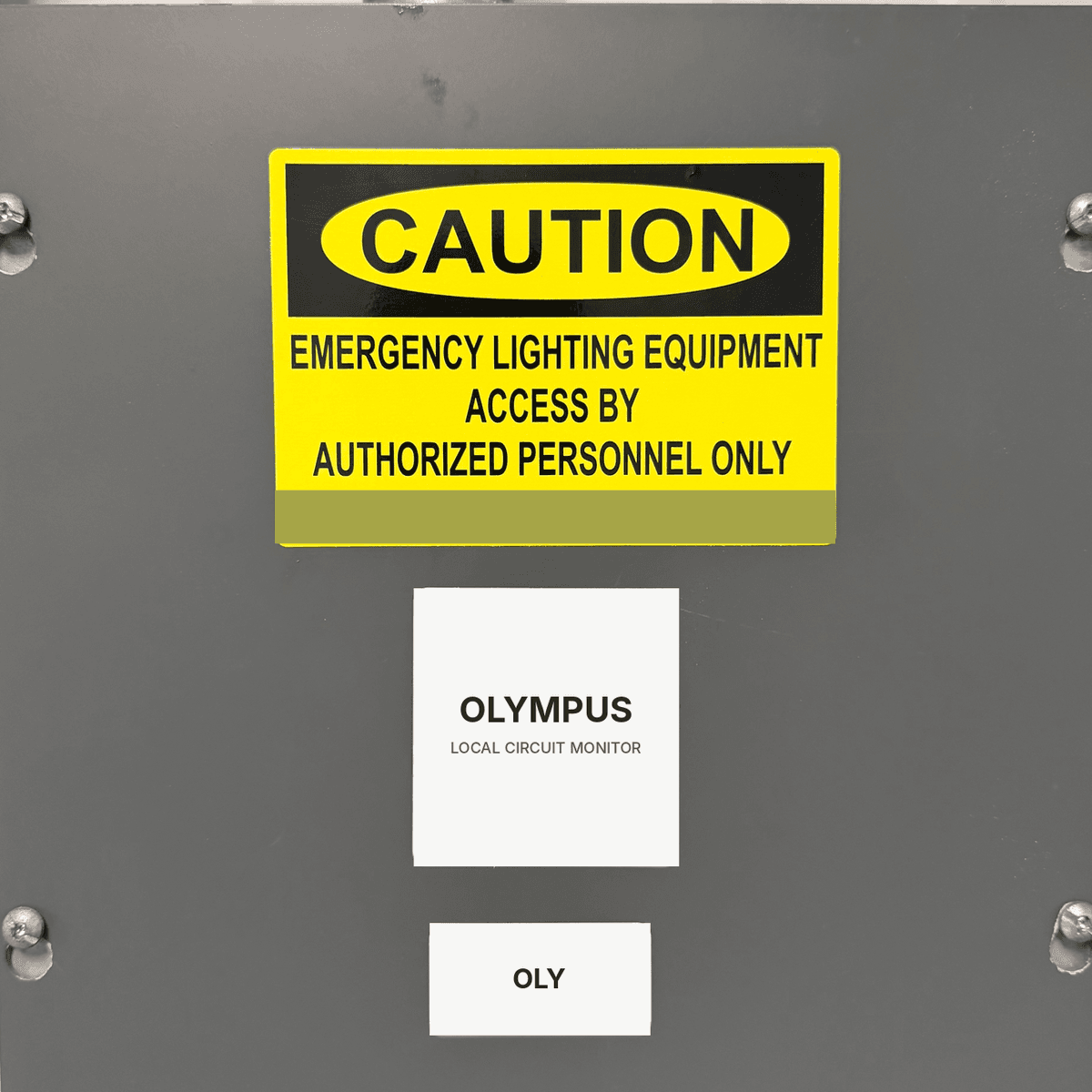

Local Circuit Monitor
Olympus
OLYLocal Circuit Monitor supervising up to nine branch circuits for egress pathway lighting. Monitors circuit breaker status and immediately activates central battery emergency lighting upon any circuit failure. Master-Remote options extend monitoring to up to 41 circuits from a single central-battery connection.
CIRCUIT MONITORING
Up to 9 (or 41) branch circuits
INSTANT ACTIVATION
Immediate central-battery trigger on fault
MASTER-REMOTE
41-circuit option available
LOW VOLTAGE
Class 2 wiring throughout
Documents
Submittal documents for Olympus — preview inline or download.
Construction & Operation
- NEMA Type 1 steel enclosure for surface or recess mount.
- Universal Input 120/277 VAC with max 5W power consumption.
Ordering Information
Configure your order code below. Click an option to add it to your SKU.
Build Your Order CodeInteractive
Type
Options (select any)
Your Order Code
OLY-M
Sample order example: OLY-M-R4
