- Overview

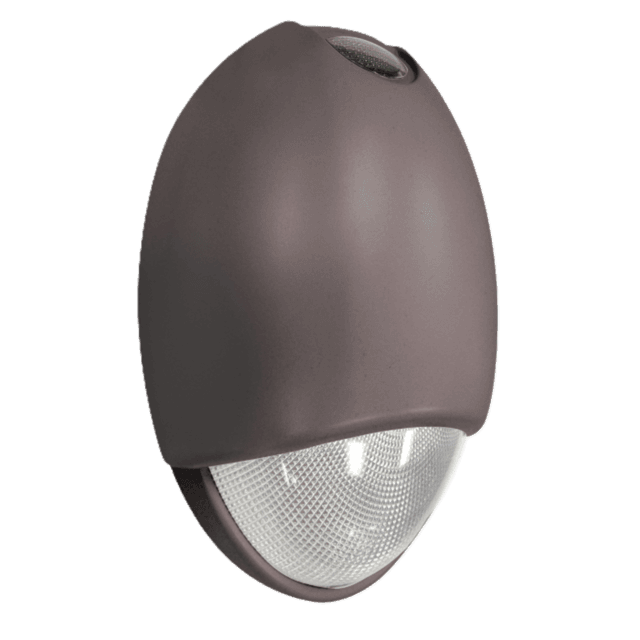

- High performance decorative LED wall pack with photo sensor control for normal AC operation, and emergency operation from either integral battery with self-diagnostics.
- Input Voltage
- Universal 120-277 VAC
- Normal Lumens
- 1080 Lm
- Emergency Lumens
- 260 Lm (with integral battery)
- Wattage
- 11 W total (two LED lamp source LED lamps for redundancy)
- Cct
- 5000K
- Battery
- 4.8V NiCd, long life, maintenance-free
- Emergency Runtime
- minimum 90 minutes
- Transfer
- internal solid-state transfer switch (automatic)
- Diagnostics
- standard self-diagnostic; charge/power 'ON' LED indicator + Push-to-Test switch
- Mounting
- Suitable for indoor or outdoor wall mounting on junction box, or with surface conduit using the supplied 1/2" threaded top access. Mounting plate has molded universal mounting pattern for simple mounting over junction box.
- Height In
- 10 3/8
- Width In
- 6 9/16
- Depth In
- 3 5/8
- Warranty
- 5 years (electronics and housing)
- Bb Model
- BB Model (NiCd Battery Backup).
- Integral Photocell
- Unit operates as a dusk to dawn luminaire and in the event of a power failure as an emergency light.
- Remote Switched
- The integral photocell can be defeated to allow remote switching for normal operation. In the event of a power failure unit operates as an emergency light.
- Normally Off
- Both the photocell and switch options can be defeated for use as a standard emergency light that only operates in battery backup mode in the event of power loss.
